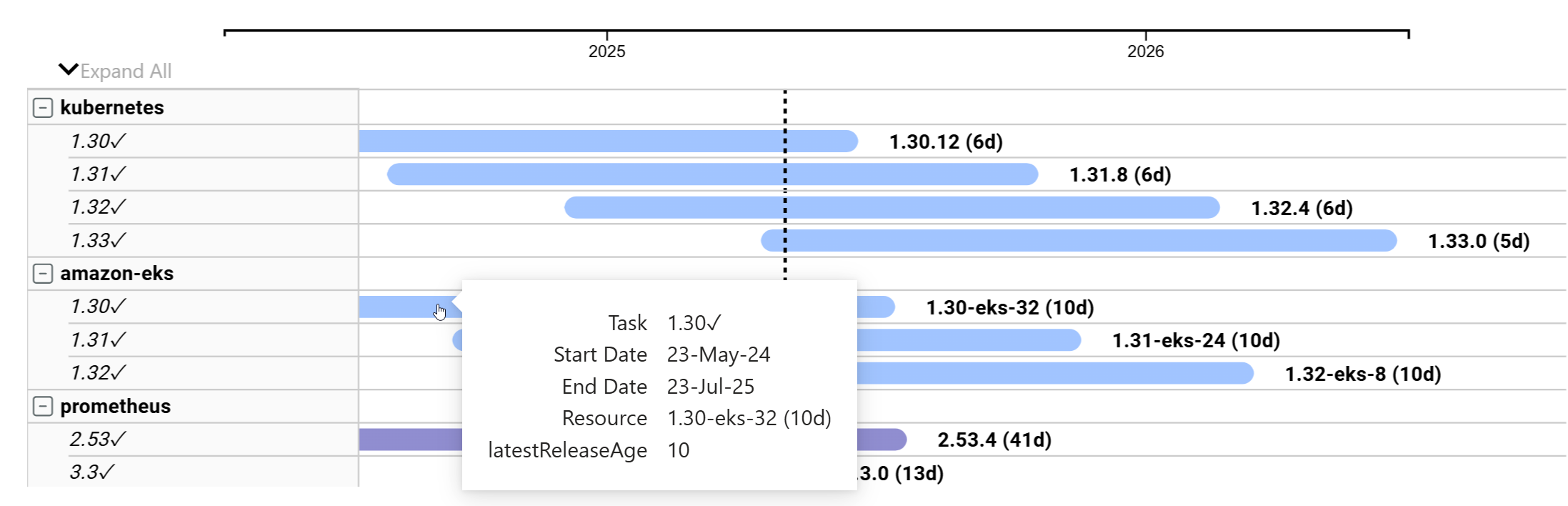

Software Lifecycle Navigator

Complex dependency graphs are the default with microservice architectures. Lifecycle Navigator visually maps release cadence and support status for over 60 software and hardware projects to assess interop and test matrix complexity. Updates weekly.

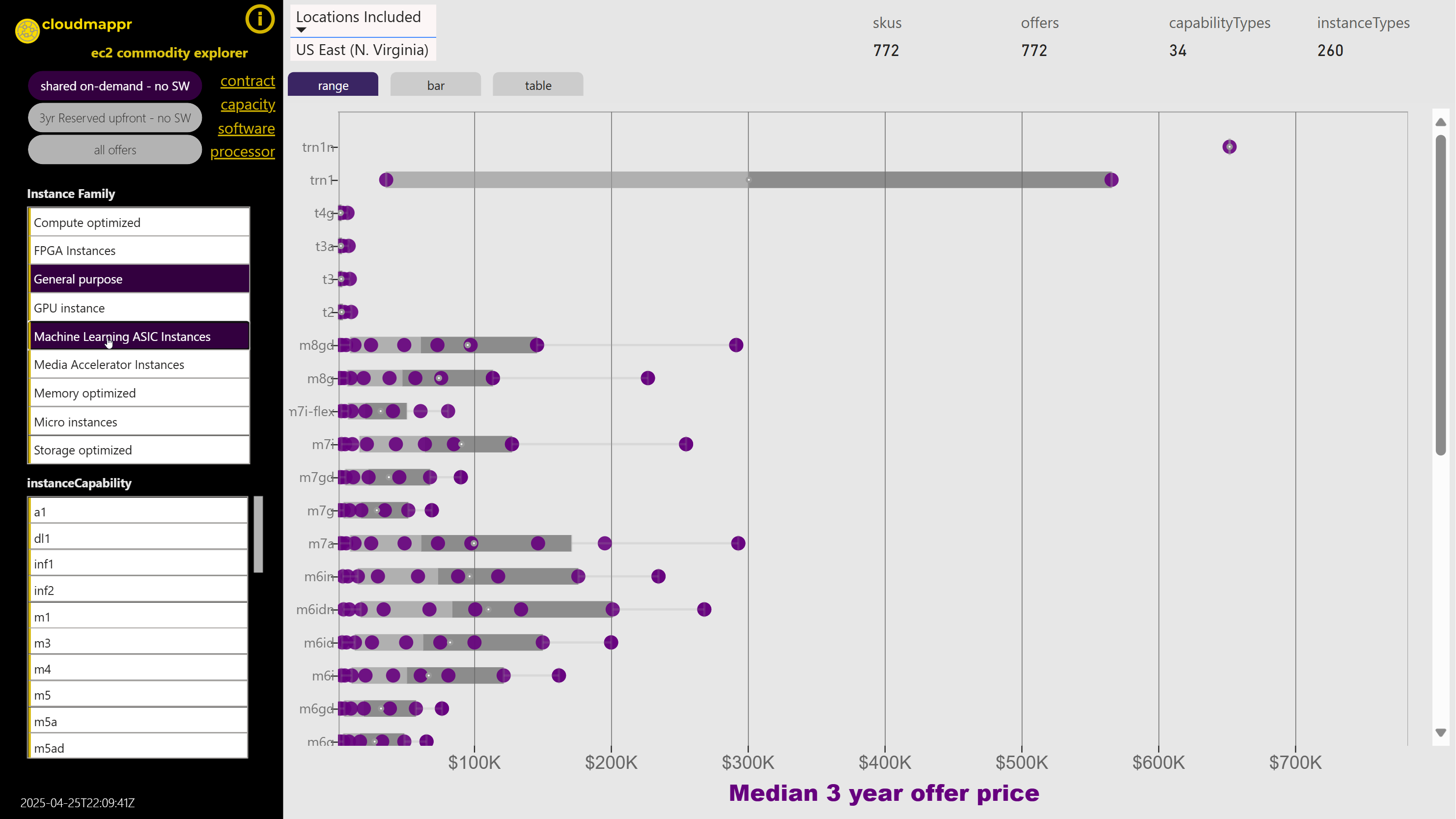

EC2 Commodity Explorer

Reliably estimate the price range of a solution before proof of concept. EC2 Explorer gives average, median, minimum, and maximum 3 year pricing for any compute instance available in US-EAST under any contract terms. Updates weekly

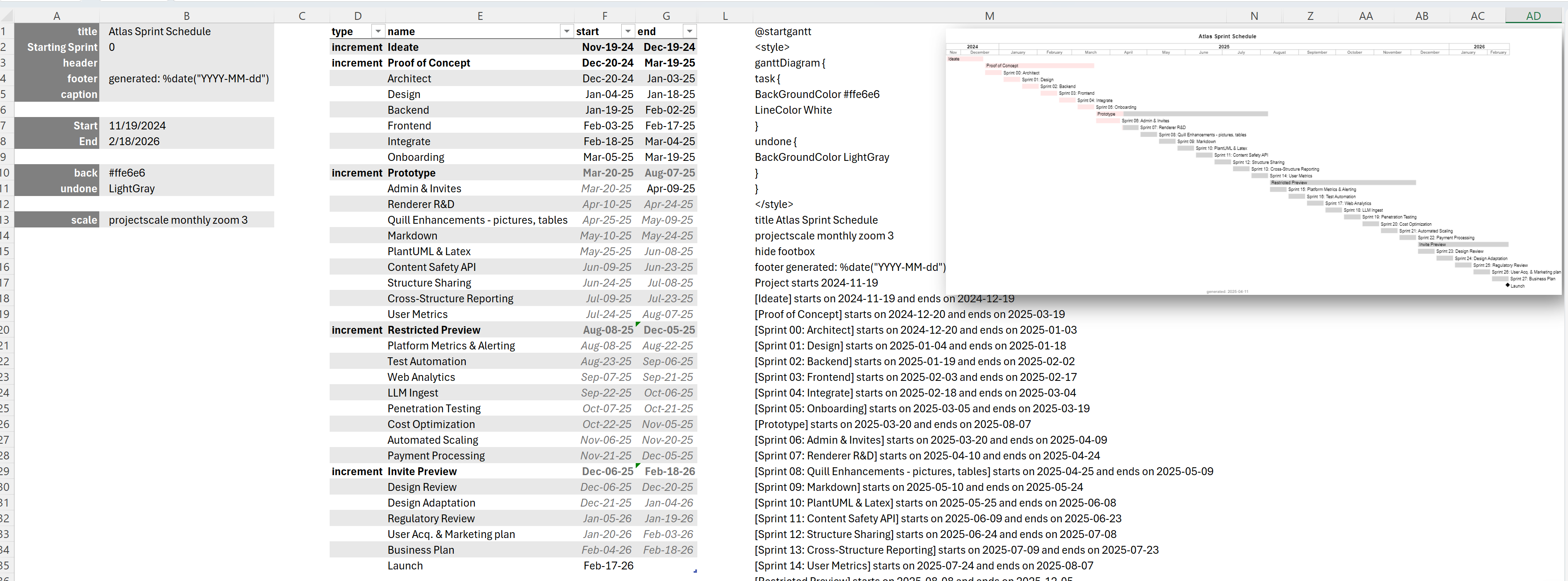

EasyGANTT

Leverage Excel or Google Sheets to generate PlantUML GANTT markup. EasyGANTT has robust features such as zoom to time period, configurable frontmatter, auto progress indication, with mutliple timebox options.

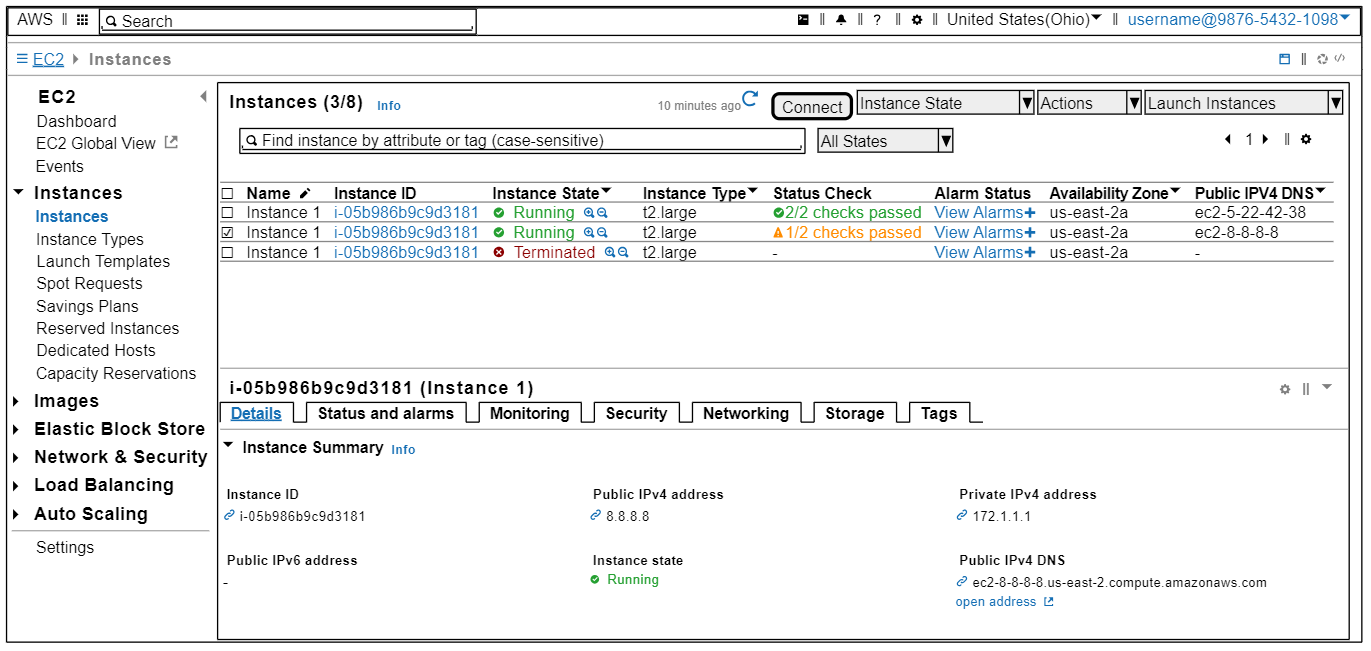

Mockup as Code

Use PlantUML and an easily navigated library of UI artifaces to generate accurate, iterable mockups as code.

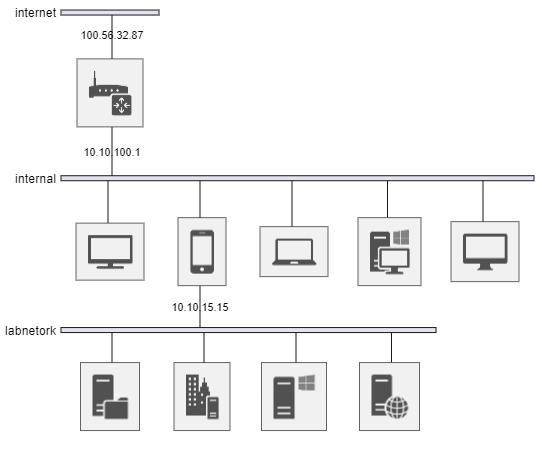

Diagram as Code

In addition to standard UML Patterns, the DAC project provides robust templates for data model illustration, a small easily navigable sprite library tuned to the infrastructure architect.
